Stargate

https://thestargateproject.com/making-the-stargate/

Assembling the sg1 stargate

Build a Stargate yourself?

https://thestargateproject.com/build-a-stargate-and-dhd-3d-printed/

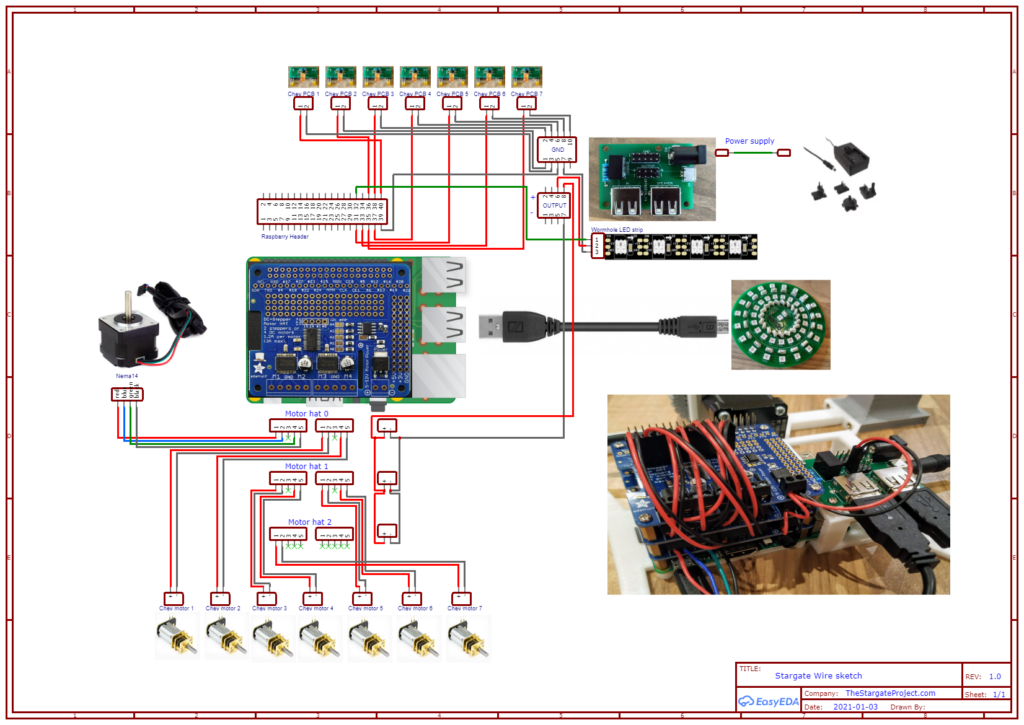

Stargate Wiring diagram

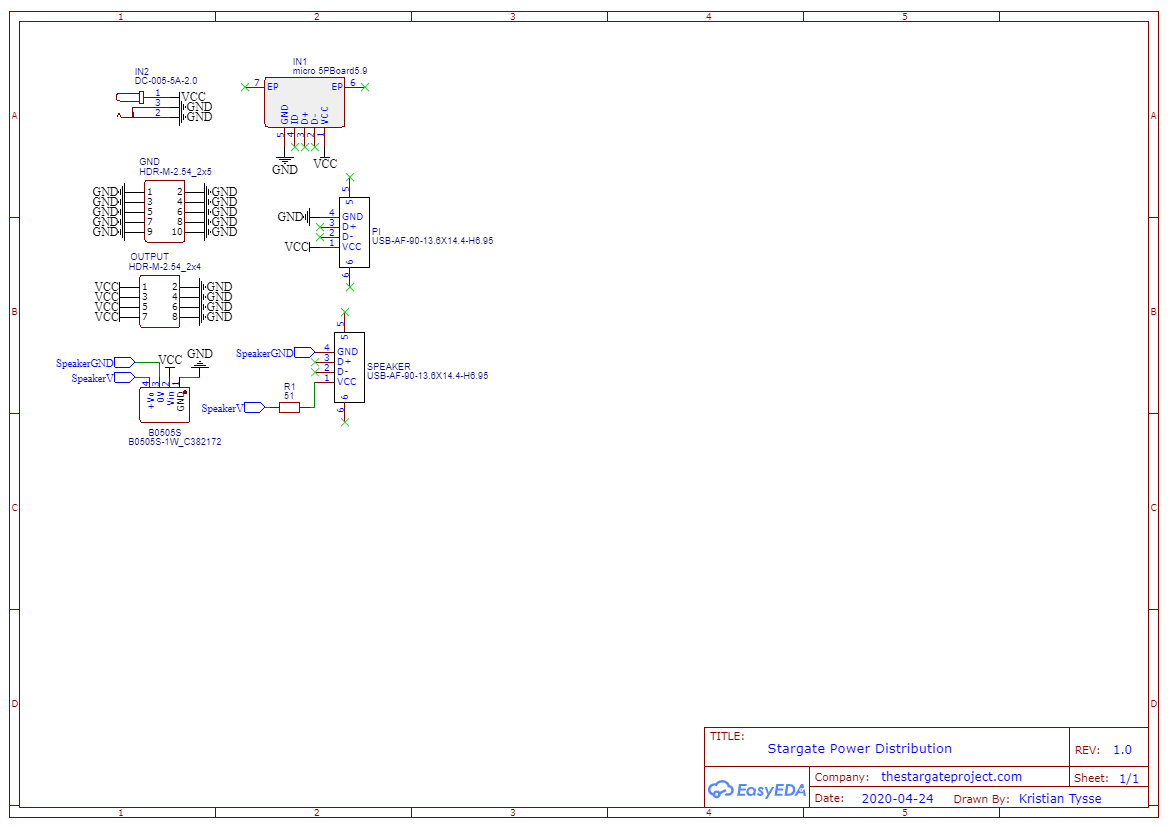

Stargate Power schematic

Made with https://easyeda.com/

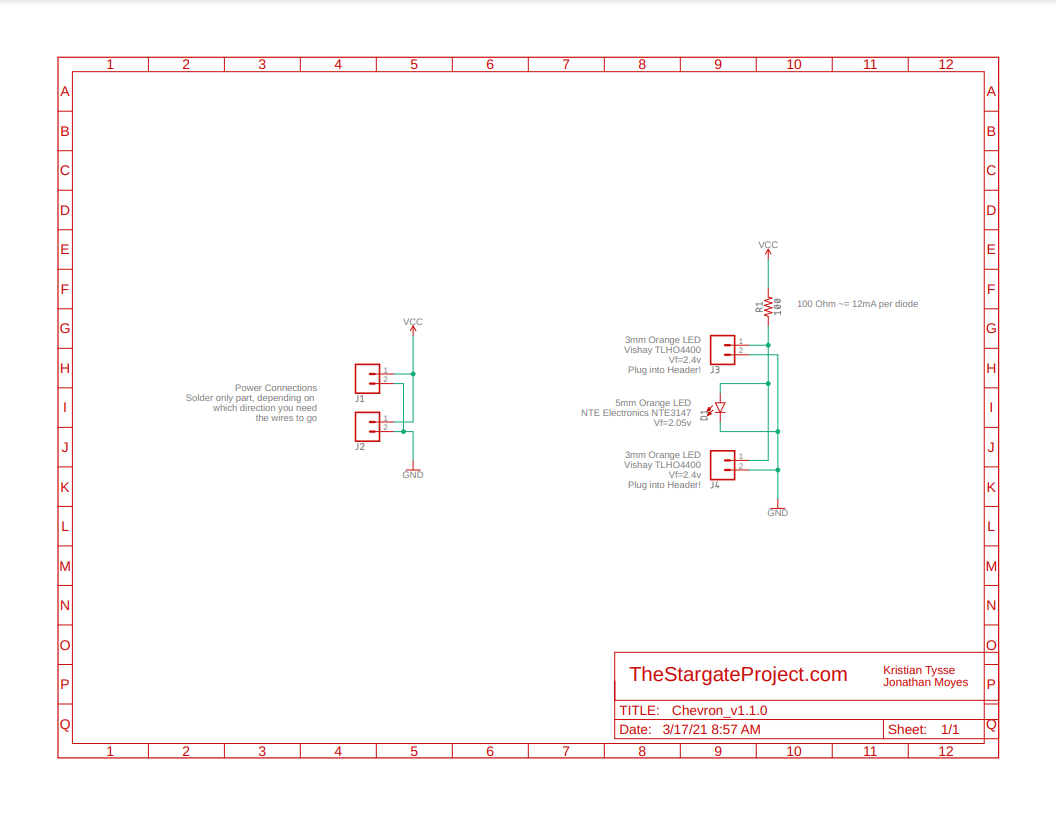

Chevron

Chevron

DHD schematics

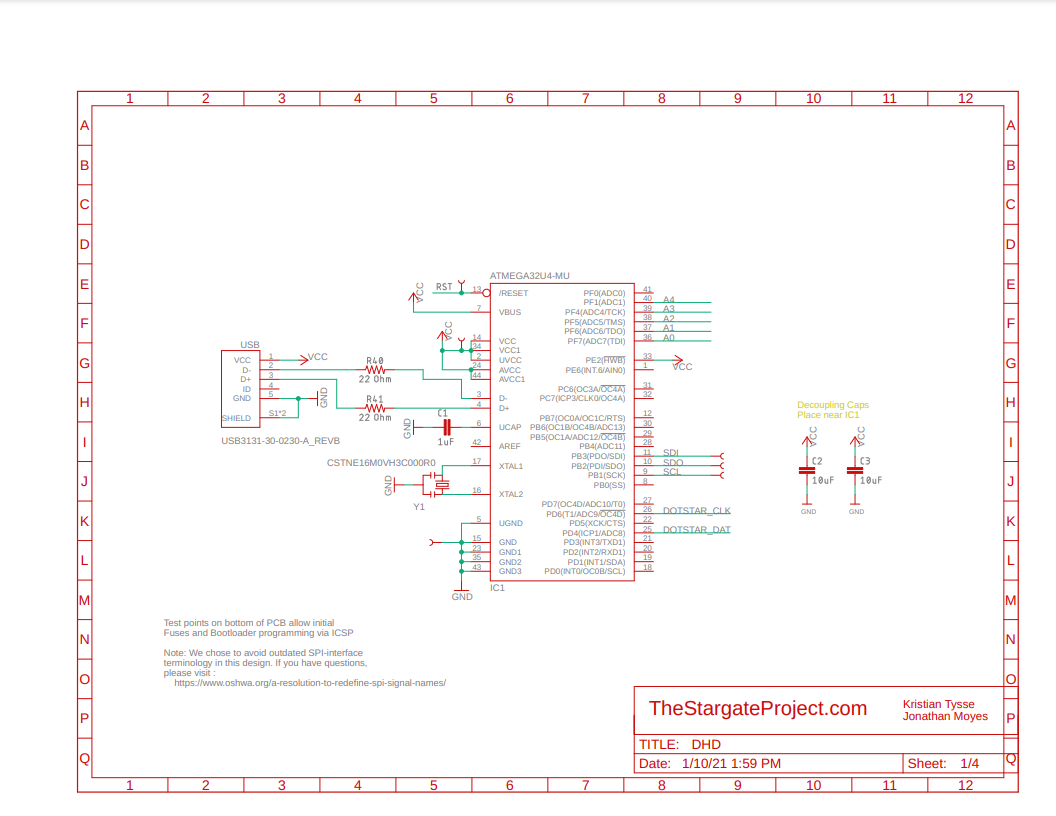

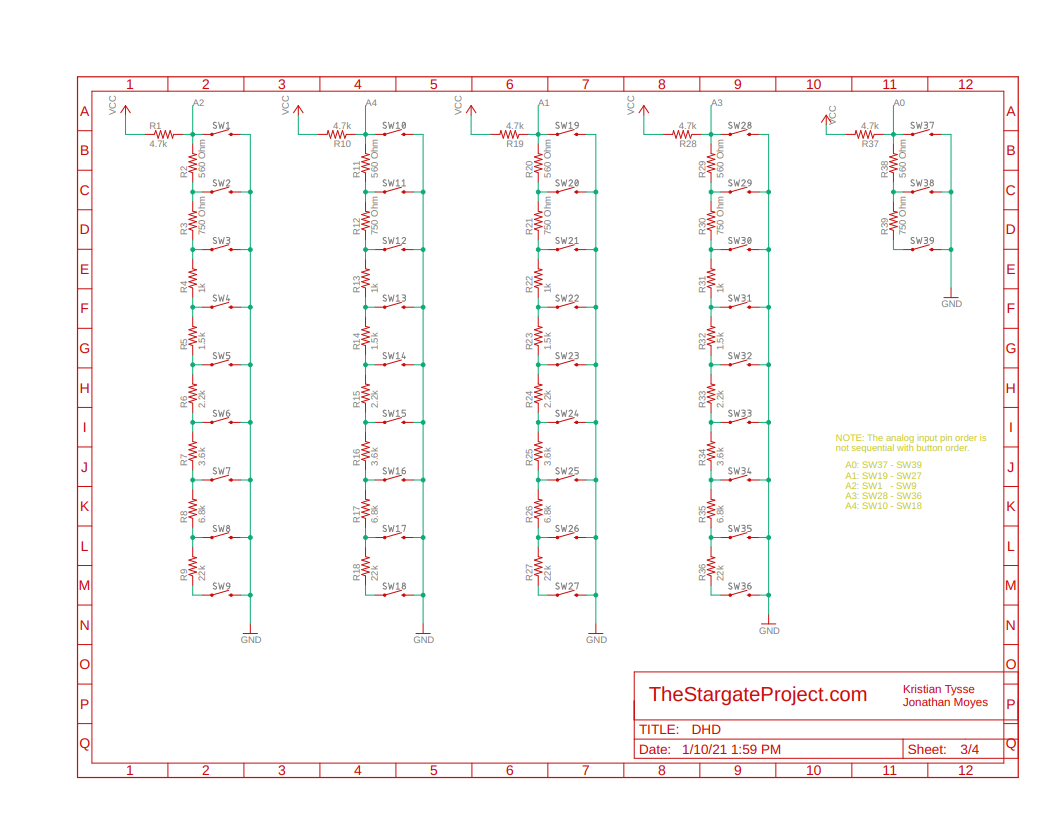

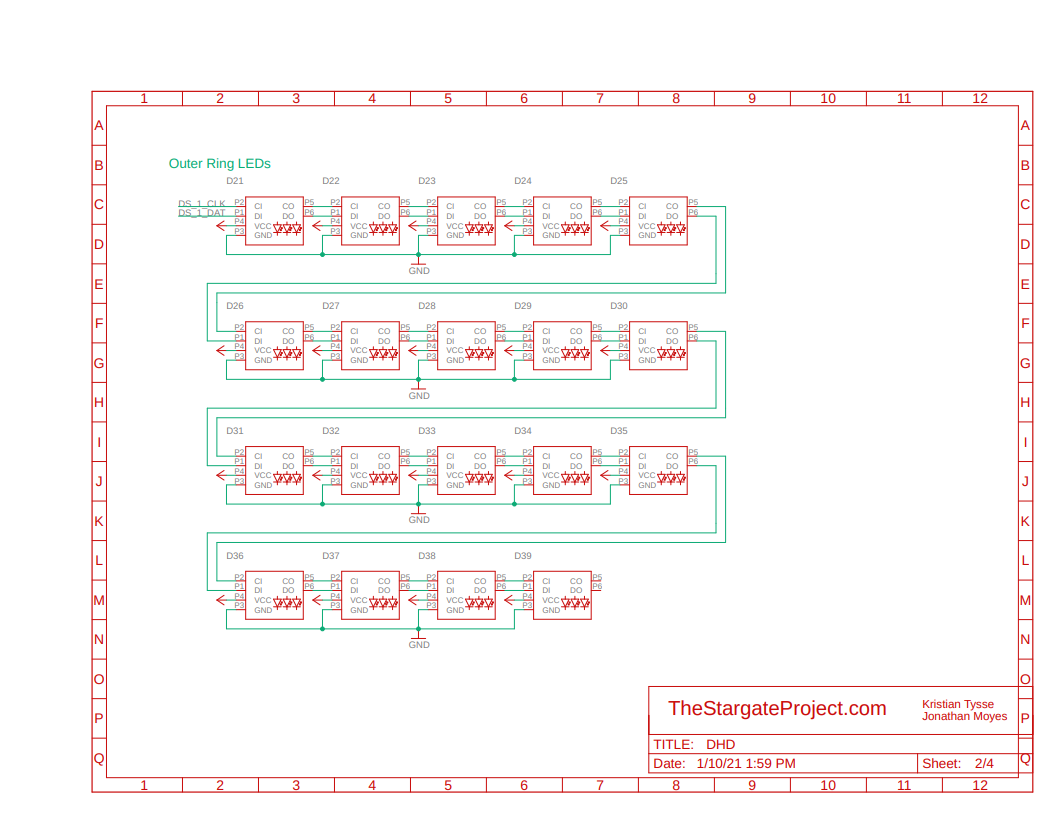

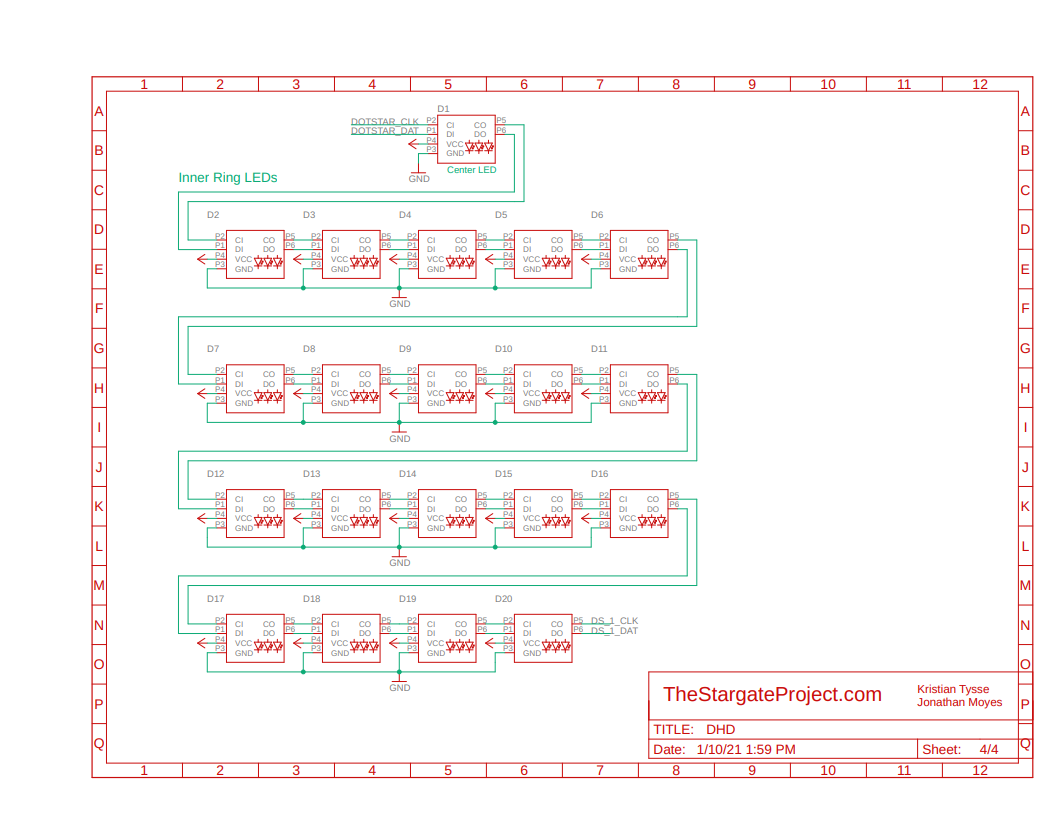

DHD schematic 1/4 DHD schematic 2/4 DHD schematic 3/4 DHD schematic 4/4

https://en.wikipedia.org/wiki/.sch_(file_extension)
